Large Diameter Helical Iron Mandrel Pipe Bending Machine Cnc

Name: Large Diameter Helical Iron Mandrel Pipe Bending Machine Cnc
Brand: Hoston
Price: 1 USD

Quality Large Diameter Helical Iron Mandrel Pipe Bending Machine Cnc wholesale

Brand Name : Hoston

Model Number : DW-65CNC-3A

MOQ : 1

Supply Ability : 100

Max. Tube o.d. Bneding Capacity : 60mm

Max. Tube Wall Thickness : 2.5mm

CLR Centerline Radius Range : 45-280mm

Max. Bending Angle : 190°

Max. Mandrel working Distance : 3000mm

Contact Now

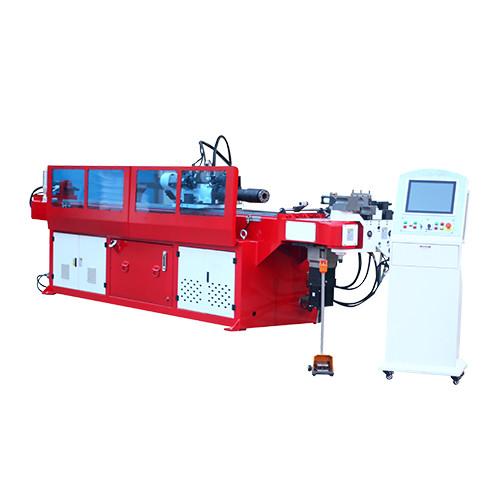

Large Diameter Helical Iron Mandrel Tube Pipe Bending Machine DW-65CNC-3A

Bending pipe with hydrauic motor or servo motor, rotating and feeding pipe with servo motor driven, high efficiency.

Multi-stack capability: the pipe bender available in single or multi-stack, fixed and variable radius capability.

CNC tube bending machine suitable for various area, like car exhaust pipe, air conditional tube, frame of biycle and motorcycle, chairs and table frame, fitness equipment ect...

Model		DW-50CNC-3A Hydr Bend	DW-65CNC-3A Hydr Bend
Max. Tube o.d. Bneding Capacity		50.8mm	60mm
Max. Tube Wall Thickness		3.5mm	2.5mm
CLR Centerline Radius Range		35-200mm	45-280mm
Max. Bending Angle		190°	190°
Max. Mandrel working Distance		2600mm	3000mm
Processing Speed	Tube Feeding Speed	750mm/sec	600mm/sec
	Tube Roration Speed	320°/sec	240°/sec
	Tube Bending Speed	75°/sec	60°/sec
Repeatability	Tube Feeding Precision	±0.01mm	±0.01mm
	Tube Roration Precision	±0.01°	±0.01°
	Tube Bending Precision	±0.01°	±0.01°
Total Motor Power		15.5kw	21kw
Overall Weight2222		2200kg	3000kg

Hybrid CNC Pipe Bending Machine

3 Axes servo- motor controlled
Super fast bending with high precision, good bending repetition
Applying for motorcycle frames, furnitures, auto parts, medeical equipmeny and so on.
