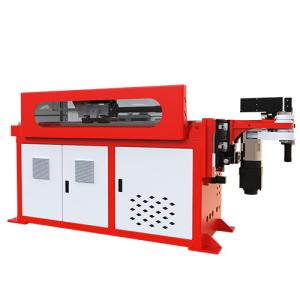

Name: Cnc Automatic Hydraulic Tube Bender Carbon Steel Pipe And Tube Bending Machine
Brand: Hoston
Price: 1 USD

Brand Name : Hoston

Model Number : DW-25CNC-5A

MOQ : 1

Supply Ability : 100

Max. Tube o.d. Bneding Capacity : 25.4mm

Max. Tube Wall Thickness : 1.5mm

CLR Centerline Radius Range : 18-150mm

Max. Bending Angle : 190°

Max. Mandrel working Distance : 2000mm

Contact Now

Cnc Automatic Hydraulic Tube Bender Carbon Steel Tube Pipe Bending Machine

Equipped with linear guide rails and servo motor drive, with high accuracy:
The system can store 400 sets of workpiece bending pipe files (expandable);
Configure sound effects and warning light warning functions:
Equipped with manual, semi-automatic, and fully automatic bending functions, as well as automatic counting function for pipe fitting work;

Model		DW-25CNC-3A Hydr Bend	DW-25CNC-5A Hydr Bend
Max. Tube o.d. Bneding Capacity		25.4mm	25.4mm
Max. Tube Wall Thickness		1.5mm	1.5mm
CLR Centerline Radius Range		18-150mm	18-150mm
Max. Bending Angle		190°	190°
Max. Mandrel working Distance		2000mm	2000mm
Processing Speed	Tube Feeding Speed	850mm/sec	850mm/sec
	Tube Roration Speed	360°/sec	360°/sec
	Tube Bending Speed	120°/sec	120°/sec
Repeatability	Tube Feeding Precision	±0.01mm	±0.01mm
	Tube Roration Precision	±0.01°	±0.01°
	Tube Bending Precision	±0.01°	±0.01°
Total Motor Power		9.0kw	11kw
Overall Weight		1200kg	1500kg

Hybrid CNC Pipe Bending Machine

PLC operation
1.Touch screen display, CNC computer operation, can store 200 group memory；

2.The error message is displayed on the screen to help the operator clear it immediately.

Customizable molds

1. Customized mold can be used for different pipe fittings;

2. Multiple layers of dies can be stacked to achieve different bend radii on one tube.

Core pulling oil cylinder

1. Feeding and rotation angle are controlled by servo, and the elbow is controlled by oil cylinder;

2 with slow bending, slow core pulling function
