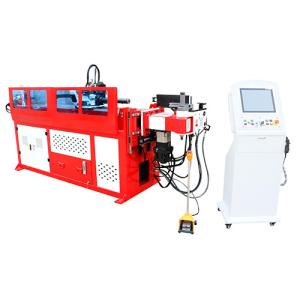

Full Automatic Pipe Bending Machine Cnc Pipe Benders 50mm 63mm 89mm 115mm

Brand Name : Hoston

Model Number : DW-25CNC-5A

MOQ : 1

Supply Ability : 100

Max. Tube o.d. Bneding Capacity : 25.4mm

Max. Tube Wall Thickness : 1.5mm

CLR Centerline Radius Range : 18-150mm

Max. Bending Angle : 190°

Max. Mandrel working Distance : 2000mm

Contact Now

CNC Tube and Pipe Bending Machine Price Full Automatic 50mm 63mm 89mm 115mm DW-25CNC-5A

The HOSTON CNC pipe bending machine boasts automatic error detection, promptly displaying faults on-screen for easy
troubleshooting. Material inputs are streamlined via the touch screen interface. For varying materials, compensation data, speed,and release gap can be adjusted at each bending step.
Servo motors drive the bending control and corner feeding, ensuring high precision and efficiency, making it ideal for intricate pipe fittings with numerous angles and stringent precision requirements.
Model
DW-25CNC-3A
Hydr Bend
DW-25CNC-5A
Hydr Bend
Max. Tube o.d. Bneding Capacity 25.4mm 25.4mm
Max. Tube Wall Thickness 1.5mm 1.5mm
CLR Centerline Radius Range 18-150mm 18-150mm
Max. Bending Angle 190° 190°
Max. Mandrel working Distance 2000mm 2000mm
Processing Speed Tube Feeding Speed 850mm/sec 850mm/sec
Tube Roration Speed 360°/sec 360°/sec
Tube Bending Speed 120°/sec 120°/sec
Repeatability Tube Feeding Precision ±0.01mm ±0.01mm
Tube Roration Precision ±0.01° ±0.01°
Tube Bending Precision ±0.01° ±0.01°
Total Motor Power 9.0kw 11kw
Overall Weight 1200kg 1500kg


Hybrid CNC Pipe Bending Machine

PLC operation
1.Touch screen display, CNC computer operation, can store 200 group memory；

2.The error message is displayed on the screen to help the operator clear it immediately.
Customizable molds
1. Customized mold can be used for different pipe fittings;
2. Multiple layers of dies can be stacked to achieve different bend radii on one tube.
Core pulling oil cylinder
1. Feeding and rotation angle are controlled by servo, and the elbow is controlled by oil cylinder;
2 with slow bending, slow core pulling function
Full Automatic Pipe Bending Machine Cnc Pipe Benders 50mm 63mm 89mm 115mm


Full Automatic Pipe Bending Machine Cnc Pipe Benders 50mm 63mm 89mm 115mm
